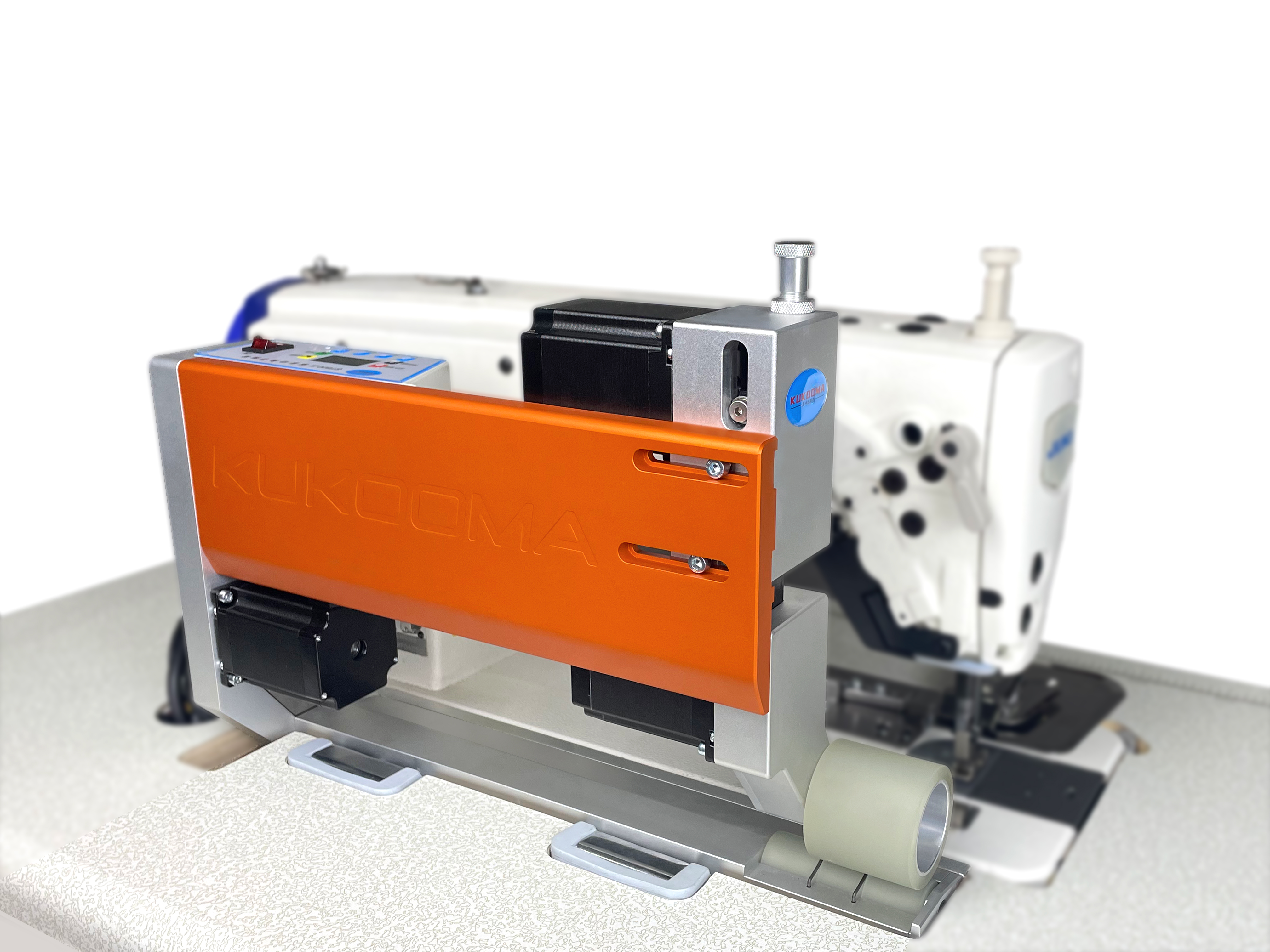

ST600三步进双驱电子拖轮
解决针对于窗帘家纺等大型缝制面料
“拉不动” “易起皱” “易错层”等问题
Solve the problems of "unable to pull", "easy to wrinkle" and "easy to split" for large sewing fabrics such as curtains and home textiles
核心优势Core strengths
1.三步进电机双驱动力更强劲，拉力更强
The dual driving force of the three-stepper motor is stronger and the pulling force is stronger
2.整机一体化集成控制无额外电控箱且控制面板数字化显示
The integrated control of the whole machine has no additional electric control box and the control panel is displayed digitally
3.是真正做到与送料牙齿同步
It is truly synchronized with the feeding teeth
4.自带差动补偿，上下轮为独立电机控制且可单独进行控速
With differential compensation, the upper and lower wheels are independently controlled by the motor and can be controlled separately
5.上轮最大抬升20mm，可应对厚至棉被，薄至纱
The upper wheel has a maximum lift of 20mm and can cope with quilts as thick as thick as tulle
6.不用可暂停，不影响缝纫机正常工作
If you don't need it, it can be paused, and it will not affect the normal operation of the sewing machine
产品特点Product features
整机采用电子步进电机直驱，采用霍尔磁感应检测具有滚轮提升准确、同步精度高、上下轮可实现差动调速的优点，拥有多种模式开机自检等功能。

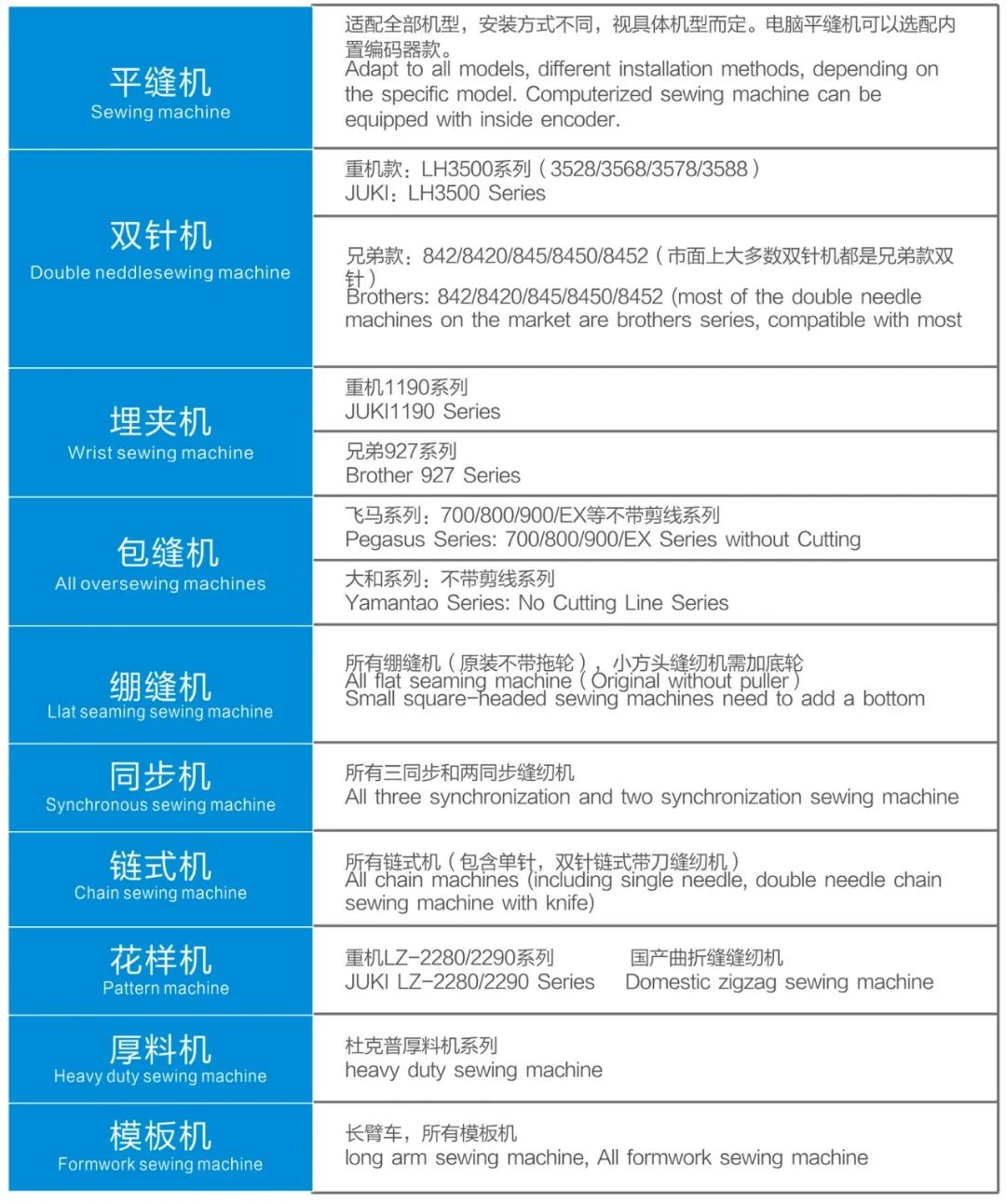

适用于平缝机，双针机，同步机，链式机，厚料机
The whole machine adopts electronic stepper motor direct drive, and Hall magnetic induction detection has the advantages of accurate roller lifting, high synchronization accuracy, differential speed regulation of upper and lower wheels, and has a variety of modes of boot self-test and other functions.
Suitable for flat sewing machine, double needle machine, synchronous machine, chain machine, thicker machine
